ESPA MEMBRANES: Energy-Saving Reverse Osmosis

The Energy Challenge in Water Treatment

Water treatment operators face a persistent challenge: delivering consistently high water quality whilst managing ever-increasing energy costs. Traditional reverse osmosis systems, whilst effective, often consume significant energy through high operating pressures, contributing substantially to operational expenses.

CUT COSTS WHILST IMPROVING WATER QUALITY

At Wycombe Water, we’ve witnessed the transformative impact that advanced membrane technology can have on both operational efficiency and cost management. As specialists in water treatment solutions with decades of experience, we’re committed to helping our clients understand how modern innovations like Hydranautics’ ESPA (Energy Saving Polyamide) membranes can revolutionise their operations.

The following article explores what ESPA membranes are, how they work, their various applications, and most importantly, how they can benefit your specific water treatment needs.

What Are ESPA Membranes?

ESPA membranes are advanced reverse osmosis (RO) elements that utilise composite polyamide technology to separate dissolved salts, contaminants, and impurities from water. What sets ESPA membranes apart from conventional RO membranes is their ability to achieve superior filtration performance whilst operating at significantly lower pressures.

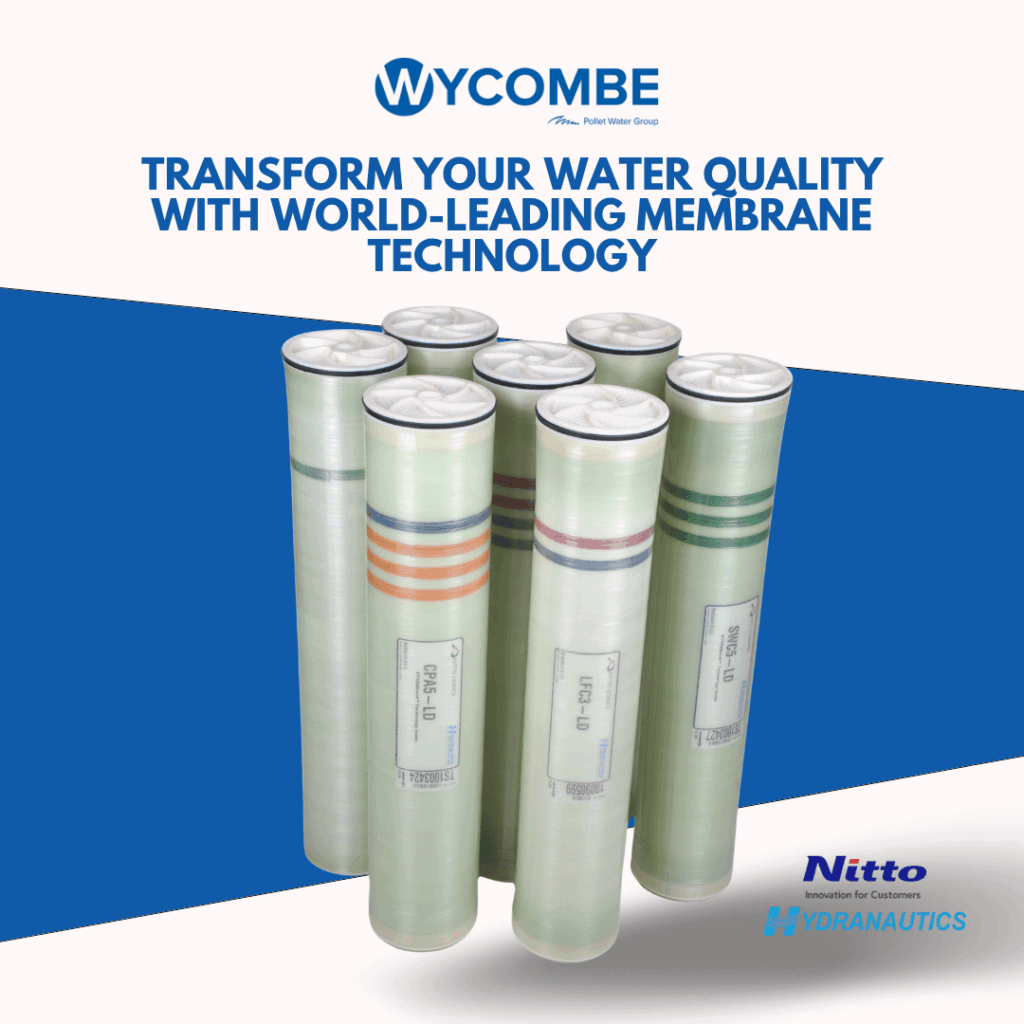

Manufactured by Hydranautics, a Nitto Group company with over 50 years of membrane technology expertise, ESPA elements feature spiral-wound configurations that maximise membrane surface area whilst minimising energy consumption. These NSF-approved membranes are designed for a comprehensive range of water treatment applications, from municipal drinking water production to industrial wastewater reclamation.

How Do ESPA Membranes Work?

Reverse osmosis works by applying pressure to force water through a semi-permeable membrane, leaving contaminants behind. The membrane’s microscopic pores allow water molecules to pass whilst rejecting larger molecules such as dissolved salts, bacteria, and other impurities.

ESPA membranes employ advanced composite polyamide chemistry that provides:

• Higher permeability: Water passes through more easily, requiring less pressure
• Consistent rejection rates: Maintains 99.2-99.6% salt rejection across the product range
• Enhanced durability: Longer operational life even in challenging conditions
• Optimised flow characteristics: Maximum permeate production with minimal energy input

The result is a membrane that delivers the same (or better) water quality as conventional RO elements whilst consuming 30-40% less energy.

The Business Case: Quantifying ESPA Benefits

Understanding the technical capabilities of ESPA membranes is important, but what matters most to facility managers and engineers is the bottom-line impact.

1. ENERGY COST SAVINGS

The single largest operational benefit
Energy typically represents 40-60% of reverse osmosis operational costs. ESPA membranes reduce operating pressures by approximately 20-40 psig compared to conventional brackish water membranes whilst maintaining equivalent or better salt rejection.

Practical calculation:
Consider a facility operating 20 pressure vessels with conventional membranes at 200 psig and switching to ESPA2 membranes operating at 160 psig:

• Pressure reduction: 20%
• Energy consumption is roughly proportional to pressure
• Expected energy savings: 18-22%
• For a facility spending £50,000 annually on RO energy costs, this represents £9,000-£11,000 in annual savings
• Over a typical 5-year membrane life: £45,000-£55,000 in cumulative savings

These figures become even more compelling for larger installations or regions with high electricity costs.

2. REDUCED CAPITAL EXPENDITURE

Max variants deliver measurable savings
The increased membrane area of MAX variants (440 ft² vs. 400 ft²) allows system designers to achieve target capacity with fewer pressure vessels.

Example Scenario:
A 250,000 gpd system using standard ESPA2 membranes (12,000 gpd each):

• Required: 21 membrane elements
• Pressure vessels needed: typically 3-4 vessels with 6-7 elements each

Same system with ESPA2 MAX membranes:

• Fewer total elements needed for equivalent performance with design margin
• Potential to reduce by 1-2 pressure vessels
• Savings: £8,000-£15,000 in vessel costs alone
• Additional savings in piping, valving, instrumentation, and floor space

4. EXTENDED MEMBRANE SERVICE LIFE

Durability translates to lower replacement costs
ESPA membranes typically deliver 5-7 years of service life in well-operated systems, compared to 3-5 years for some conventional membranes.

Replacement cost impact:
For a 20-element system:

• Conventional membrane cost: £600-£800 per element
• Total replacement: £12,000-£16,000 every 3-4 years
• ESPA membranes: same initial cost but replaced every 5-7 years
• Lifecycle cost reduction: 30-40% lower annualised membrane costs

5. IMPROVED WATER QUALITY AND REGULATORY COMPLIANCE

Consistent performance reduces risk
ESPA membranes’ superior salt rejection (99.2-99.6%) provides safety margins that help ensure continuous regulatory compliance.

Value of Reliability:

• Avoiding non-compliance penalties
• Reduced monitoring and testing requirements
• Customer confidence in water quality
• Simplified operations with predictable performance

Key Industries and Applications: Where ESPA Membranes Excel

ESPA membranes serve a diverse range of industries, each with specific water quality requirements.

MUNICIPAL WATER TREATMENT

ESPA membranes are extensively used by water utilities for producing safe drinking water from ground, surface, and wastewater sources. ESPA1 elements efficiently remove dissolved solids, bacteria, and viruses to meet stringent drinking water regulations, whilst ESPA2 membranes have become the industry standard for large-scale municipal wastewater reclamation plants, offering the highest energy efficiency for water reuse schemes.

PHARMACEUTICAL MANUFACTURING

The pharmaceutical industry demands ultra-pure water for drug production, equipment cleaning, and formulation processes. ESPA4 membranes in second-pass RO systems consistently produce USP (United States Pharmacopeia) purified water that meets rigorous pharmaceutical standards, ensuring product safety and regulatory compliance whilst minimising energy consumption.

FOOD & BEVERAGE PRODUCTION

From brewing and soft drinks to dairy processing, the food and beverage sector relies on high-quality water for product consistency and safety. ESPA membranes remove minerals, contaminants, and microorganisms that could affect taste, appearance, or shelf life, whilst their energy efficiency reduces production costs in this competitive industry.

ELECTRONICS & SEMICONDUCTOR MANUFACTURING

Semiconductor fabrication requires ultra-pure water with virtually no dissolved solids or particles that could damage sensitive components. Multi-pass RO systems using ESPA membranes produce the exceptionally high-purity water necessary for wafer cleaning, chemical dilution, and other critical manufacturing processes in electronics production.

POWER GENERATION

Power stations require demineralised water for boiler feedwater to prevent scaling and corrosion in high-pressure steam systems. ESPA membranes provide a cost-effective alternative to traditional ion exchange systems, producing high-purity water whilst significantly reducing chemical consumption and regeneration waste.

AGRICULTURAL & HORTICULTURAL OPERATIONS

Agriculture faces unique challenges with water containing elevated boron levels or high total dissolved solids that can damage sensitive crops. ESPAB membranes specifically remove boron from irrigation water for citrus groves, vineyards, stone fruit orchards, and greenhouse operations, whilst the broader ESPA range desalinates brackish groundwater for reliable agricultural water supply.

INDUSTRIAL MANUFACTURING

Diverse manufacturing sectors including automotive, textiles, chemicals, and metal finishing require consistent process water quality. ESPA membranes remove contaminants that interfere with manufacturing processes, reduce chemical consumption in subsequent treatment steps, and enable water recycling within facilities to lower intake and discharge volumes.

BRACKISH WATER DESALINATION

Inland regions often rely on brackish groundwater with elevated dissolved solids unsuitable for direct use. The ESPA range is specifically engineered for brackish water treatment, operating at much lower pressures than seawater RO systems whilst delivering potable-quality water for communities, industries, and commercial operations in water-scarce regions.

Conclusion: Transform Your Water Treatment Operations

Energy costs, water quality requirements, and environmental concerns continue to challenge water treatment operators. ESPA membrane technology addresses these challenges directly, offering:

Proven Energy Savings: 30-40% reduction in operating pressures translates directly to lower electricity costs
Superior Performance: 99.2-99.6% salt rejection delivers consistently high water quality
Reduced Maintenance: LD Technology extends cleaning intervals and reduces operational complexity
Lower Capital Costs: MAX variants reduce the number of pressure vessels required
Application Versatility: Complete range addressing municipal, industrial, agricultural, and specialised applications
Long-Term Reliability: 5-7+ year service life backed by decades of proven performance
Environmental Benefits: Lower energy consumption, reduced chemical usage, and enabling water reuse

The question isn’t whether ESPA membranes can improve your water treatment operations, it’s whether you can afford not to take advantage of this technology.

Take the Next Step

Ready to discover how ESPA membranes can transform your water treatment operations? Our specialists are ready to help:

CONTACT WYCOMBE WATER TODAY:

📧 Email: sales@wycombewater.co.uk
☎️ Phone: 01296 332650

WE’LL PROVIDE:

• Free technical consultation
• Application-specific membrane recommendations
• Detailed performance and cost projections
• System design support
• Competitive quotations

Don’t let high energy costs and maintenance challenges drain your resources. Partner with Wycombe Water and discover how over 50 years of Hydranautics membrane innovation can benefit your specific application.

Wycombe Water – Your Water Treatment Experts

Bringing world-class membrane technology and decades of specialist knowledge to UK water treatment applications.
