Water Meters


At Wycombe Water, we understand the importance of efficient water management and the need for accurate measurement. Our state-of-the-art water meters are designed to provide precise readings, ensuring that you only pay for the water you use. With advanced technology and reliable components, our meters guarantee accuracy and reliability, helping you monitor your water consumption with confidence. Whether you are a residential customer or a commercial entity, our water meters are tailored to meet your specific needs. By investing in our meters, you contribute to sustainable water usage and conservation efforts. At Wycombe Water, we are committed to delivering innovative solutions that empower our customers to make informed decisions about their water usage, promote conservation, and ultimately contribute to a greener, more sustainable future.

Water Meters

One of the notable features of multi-jet water meters is their ability to handle varying water qualities, including those with some level of impurities. The design of the meter allows it to resist clogging and maintain accuracy over time, contributing to their longevity and minimal maintenance requirements. These meters are also generally cost-effective, making them a popular choice for utility companies and property owners alike. With their durability, versatility, and accuracy, multi-jet water meters continue to be a trusted tool for monitoring water consumption and promoting efficient water management.

Specifications

Types

  • MJ-SDC Multi-Jet Water Meter with Dry Dial
  • WP-SDC Woltmann Water Meter with Super Dry Dial

WP-SDC Woltmann Water Meter with Super Dry Dial

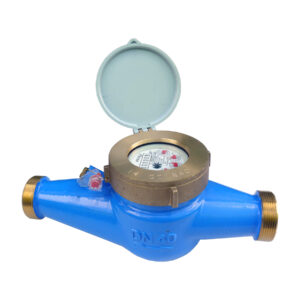

The MJ-SDC is a multi-jet mechanical water meter with dry type dial counter suitable for a variety of metering applications including
general purpose, tenant billing and ommercial metering tasks available in sizes DN15 (1/2”) to DN50 (2”).

Features:

  • Multi-jet impellar meter type
  • Compact design for most metering applications
  • Approved: EN14154+A1+A2,OIML R-49: 2006(E)
  • Shielded from Magnetic interference
  • BSP fittings supplied (nuts, tails & washers)
  • Maximum pressure of 16 bar
  • Maximum temperature of 30°C (T30)
  • Pulse Output option: Vmax=24AC/DC, Imax=0.01A
  • Tamper evident wire lock & seal, Inlet NRV option
  • Dry dial (frost resistant)
  • Meter body material is epoxy coated brass
  • Drinking water approved : WRAS

WP-SDC Woltmann Water Meter with Super Dry Dial

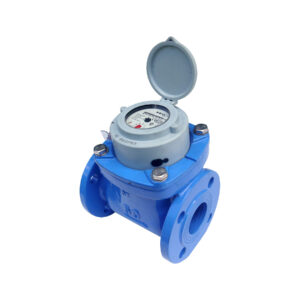

The WP-SDC is a woltmann mechanical water meter with dry type dial counter suitable for a variety of water distribution and industrial
applications available in sizes DN50 (2”) to DN500 (20”).

Features:

  • Woltmann helix meter type (Bulk Meter)
  • Replaceable ‘drop-in’ mechanism
  • Approved: EN14154:2005+A1,OIML R-49: 2006(E)
  • Dry dial (frost resistant)
  • Meter body material is epoxy coated cast iron
  • Drinking water approved: WRAS
  • Can be installed vertically or horizontally
  • DIN flanged connections (ANSI option)
  • Maximum pressure of 16 bar
  • Maximum temperature of 50°C (T30 or T50)
  • Pulse Output option: Vmax=24AC/DC, Imax=0.01A
  • Tamper evident wire lock & seal

OUR RANGE OF WATER Meters

MJ-SDC WP-SDC
